This equipment is used for PCB closing operation of SMT and Al production lines.
|

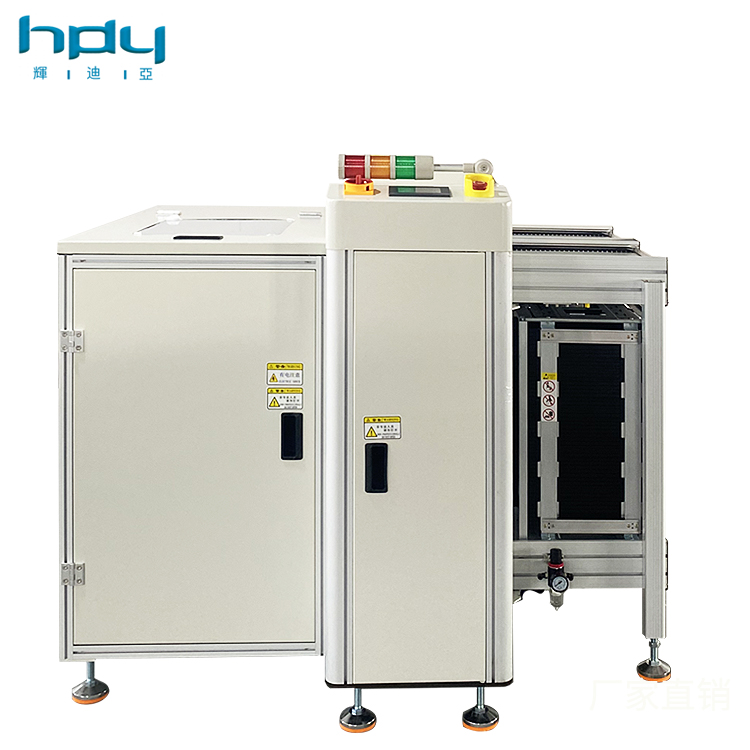

HDY-460SB1 Fully sealed Unloader |
|
1) external dimensions:L2260*W1100*H1650±30mm |
|
2) special aluminum profile guide and special thousand bird plastic chain |
|
3) 90W brake motor drive ball screw to make Magazine step up and down |
|
4) The transmission motor is a l5W constant speed platform motor |
|
4) pneumatic clamping structure. |
|
5) with 650mm long push plate conveyor |
|
6) Magazine specification：(L)535*(W)530*(H)565mm |
|
7) PCB specification MAX：(L)525*(W)460mm |
|
8)direction: left to right/right to left |
|
9) Thelifting platform pitch is selected as 10,20,30,40 |
|
10) Huichuan PLC programmable controller control |
|
11) automatic collection function |
|
12) operation control panel is the display control real color touch screen |
|
13) power：220V 50HZ； |
|
14) air source：0.4-0.6MPa |
|
15) full load storage：50PCS |
|
16) a set of electric control box |
|
17) Panasonic, Omron Optoelectronics, Mingwei Power Supply, Schneider Relay。 |
Features
1. This equipment is used for PCB closing operation of SMT and Al production lines.
2. PLC control system, true color touch screen man-machine control.
3.Auxiliary positioning braking system, accurate positioning, fast lifting and high production eficiency.
4.Multiple electrical distribution circuit protection, safe and reliable.
5.Sound and light prompt alarm system, operation and maintenance easier
6.The electric push plate desiqn can ensure that the PCB is not pushed out.
7. Real-time fault monitoring of the whole machine.Compatible with SMEMA interface.
8. Sealed design, effectively avoiding production accidents for production personnel.
